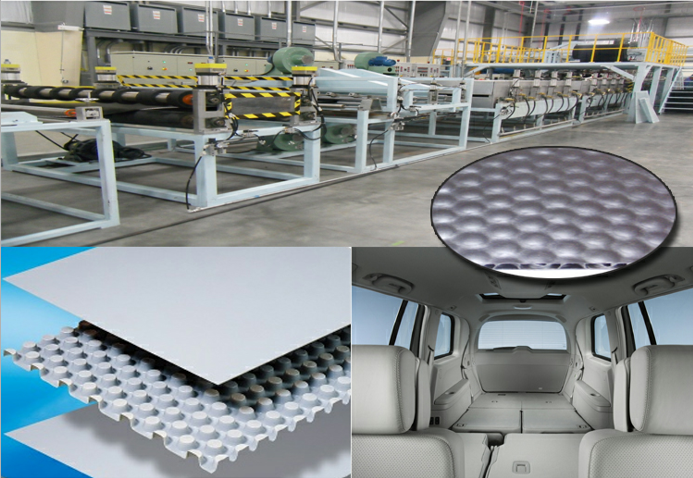

How to Improve the Stability of Honeycomb Panel Production Line Equipment

Lightweight, high-strength, sound and heat insulating honeycomb panels are widely used in building envelopes, new energy vehicle structural parts, precision packaging and other fields. Product quality and production efficiency rely heavily on stable production line equipment. Equipment instability such as honeycomb core displacement, poor bonding and dimensional deviation will directly lead to product scrap and delivery delays. Therefore, multi-dimensional optimization of equipment management to boost line stability has become a core industry measure to cut costs and raise efficiency.

1. Upgrade Core Process Components as the Foundation of Stability

The key processes of honeycomb panel production include core forming, adhesive coating and hot-press lamination. Critical parts shall be optimized accordingly:

Hot presses adopt electromagnetic induction heating and closed-loop oil temperature control instead of traditional resistance heating with slow temperature response, limiting temperature fluctuation within ±1°C to meet curing requirements of various adhesives.

Forming molds are made of high-hardness alloy and precision-machined by CNC grinders, with flatness error controlled within 0.02 mm to prevent uneven honeycomb cell deformation.

The feeding system is upgraded to servo-driven rack-and-pinion structure with real-time correction via tension sensors, reducing feeding deviation from 0.5 mm to 0.1 mm and guaranteeing precise alignment between core and face sheets.

2. Full-Process Intelligent Monitoring & Fault Early Warning for Proactive Prevention

Temperature, pressure and vibration sensors are installed at 12 key positions of the production line to build an IoT data collection platform, transmitting over 20 operating parameters including lamination pressure, core tension and mold vibration in real time. Thresholds are preset: the system triggers audible-visual alarms and halts production if hot-press temperature drifts over 3°C or feeding error exceeds 0.2 mm, avoiding defective products.

Big data analysis of equipment operation trends predicts latent failures such as guide rail wear and sensor offset in advance. A leading panel manufacturer cut unplanned downtime by 32% after implementation.

3. Standardized & Dynamically Adaptive Process Parameters to Eliminate Manual Errors

A process database covering honeycomb panels of diverse materials and specifications is established. For instance, optimal parameters are automatically matched for 5 mm aluminum honeycomb panels: 0.25 mm glue thickness, 1.3 MPa hot-pressing pressure and 20 seconds pressing duration.

If raw material humidity lowers core tension by 10% during production, tension sensors feed signals back to the control system to automatically adjust tension roller speed without manual operation, keeping dimensional tolerance of all batches within ±0.5 mm.

4. Comprehensive Preventive Maintenance System as Stability Safeguard

A three-level maintenance regime is implemented: daily sensor inspection, weekly guide rail straightness calibration and monthly worn cutter replacement.

Full-lifecycle files are created for each piece of equipment to trace root causes of faults and optimize maintenance cycles, slashing replacement frequency of core components by 18%. Operators also receive training on intelligent system operation to reduce downtime caused by misoperation.

Conclusion

Multi-dimensional improvements including precision core components, intelligent monitoring, standardized processes and complete maintenance can lift product yield from 92% to 98% and boost production efficiency by 25%, helping enterprises build core competitiveness. With deeper integration of AI algorithms in equipment parameter optimization, production line stability will be further enhanced and drive the industry toward higher efficiency.
